Technical specifications

IP classification:	IP56
Power:	Program: 600W Rated: 300W RMS
Frequency range:	55 - 18000 Hz
Sensitivity:	98 dB (1W/1m)
Max. SPL:	122 dB
Dispersion angle:	80° x 80°
Impedance:	8 ohms; public address systems 100V
Attachment system:	Mounting bracket
Power tapping:	50W; 100W; 200W RMS via selector switch switchable
Connections:	Input: speaker via screw terminal
Crossover frequency:	2200 Hz
Speaker:	1 x woofer 12" Voice coil lows 3" 1 x compression tweeter highs 1" Voice coil compression tweeter highs 1.7"
Type of speaker:	On ceiling/on wall speaker
Color:	White
Dimensions:	Width: 45 cm Depth: 41.5 cm Height: 42 cm
Weight:	19.95 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397647662	21,85 kg	47cm x 45cm x 48cm
1	4026397723038		46,2cm x 43,2cm x 44,5cm

Spare parts

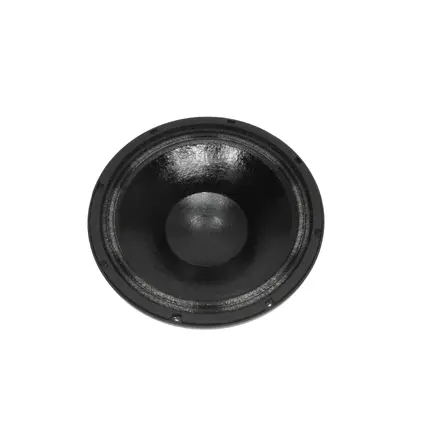

woofer 12" 8Ohm 300W ODX-212T

Voicecoil ODX-212T

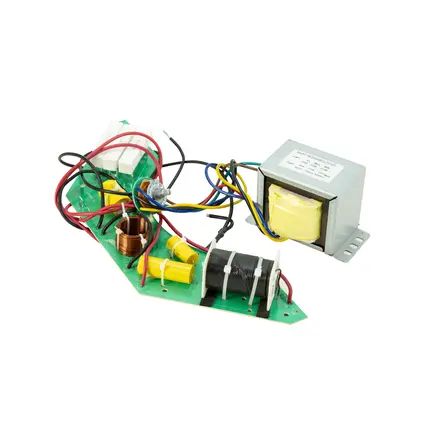

crossover ODX-212T

Bracket ODX-212T (1-part) white

woofer 12" 8Ohm 300W ODX-212T V2

crossover ODX-212T V2

Set (Back cover) ODX-Series white

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

All images

Name	Version	Language
11036964-Images-.zip

Publications

Move Magazine #2/2020 E

On page: 11

Size: 16 MB

Move Magazine #2/2022 E

On page: 71

Size: 28 MB

OMNITRONIC ODX-212T Installation Speaker 100V white

Name: OMNITRONIC ODX-212T Installation Speaker 100V white
Brand: OMNITRONIC
SKU: 11036964
Price: 479.00 EUR
Availability: InStock

Weather-proof 12" wall speaker (IP56) with mount, 300 W RMS-MainBild

Weather-proof 12" wall speaker (IP56) with mount, 300 W RMS-Bild-1

OMNITRONIC ODX-212T Installation Speaker 100V white

Stock for approx. 12 wk(s)

479,00 €

Find a dealer

Stock for approx. 12 wk(s)

List price excl. 19% VAT
Prices in retail stores may vary.

No. 11036964

Weatherproof 12" wall speaker with mount

The ODX-212T 100 V sound reinforcement box by OMNITRONIC offers excellent sound and is ideally suited for outdoor use with its protection class IP56.

The 2-way coaxial system is equipped with a 30 cm woofer and a 2.5 cm tweeter and a 100 V transformer with 3 power taps. In addition, the wall-mounted speaker has a power switch with an 8-ohm operating setting.

The weatherproof, white plastic housing with the swivel mounting bracket can be mounted at variable angles.

Weather-proof 12" wall speaker (IP56) with mount, 300 W RMS

2-way coaxial system with 30 cm woofer (12") and 2.5 cm tweeter (1")
Durable plastic cabinet with metal grille
Power selector switch with 8 ohms operating position
Screw terminals for parallel connection
With mounting bracket
Suitable for outdoor use IP56
For application areas such as: Installation; sports centres/gyms; multi-purpose hall
