Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	25.00 W
Protection class:	Protection class II
Power connection:	Mains input via C8 (M) "figure 8" mounting version power supply cord with Euro plug (provided)
Frequency range:	20 - 20000 Hz
S/N ratio:	>60 dB
Impedance:	Input: microphone 1 kOhm Input: line 1 kOhm Input: phono 1 kOhm
Gain:	Input: variable
Control elements:	Crossfader selector switch, crossfader, source selector, power switch
Status LED:	Power, CUE, master level meter, channel level meter
Connections:	Input: microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via 5 x stereo RCA Input: phono via 2 x stereo RCA Output: master via 2 x 3-pin XLR Output: master via 1 x stereo RCA Output: rec. via 1 x stereo RCA Output: rec. via 1 x USB B (F) mounting version Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version
Channels:	Input channel: 2 x stereo with line-phono switch via RCA, channel control via fader, 2-band tone control EQ -30dB to12dB at 80Hz/12kHz, gain control Input channel: 1 x stereo with line-line switch via RCA, channel control via fader, 2-band tone control EQ -30dB to12dB at 80Hz/12kHz, gain control, CUE switch Input channel: 1 x stereo with line-USB switch via RCA or USB, channel control via fader, 2-band tone control EQ -30dB to12dB at 80Hz/12kHz, gain control Microphone channel: 1 x mono via Combination socket (XLR/jack), channel control via rotary dial, 2-band tone control EQ -30dB to12dB at 70Hz/13kHz, cue mix function Master output: 1 x stereo via XLR or RCA, channel control via rotary dial Headphones output: stereo via jack, channel control via rotary dial
USB port:	USB 2.0, type B
PC connect:	Via USB
Housing design:	(19") 48.3 cm rack installation 4 U
Dimensions:	Width: 48.3 cm Depth: 17.8 cm Height: 8.9 cm
Weight:	2.90 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397453423	3,50 kg	56cm x 25cm x 16cm
2	4026397454833	7,65 kg	58cm x 27cm x 32,5cm

Spare parts

Fader 100KBx2 45mm for Crossfader

Socket XLR 3-Pol/Klinke (Microphon)

Poti B203 2x 20KOhm 6-pin (Gain) PM-444

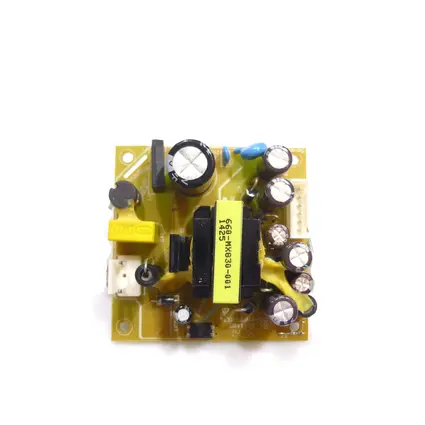

PCB (Power Supply) PM-444(ZB-WJMX830-001)

Switch (zone on/off) MPZ (6-pin)

jack mounting socket 6.3mm 3-pin plastic MP120

mounting pluck XLR belt 3-pin plastic (UHF-400)

Cable USB A male > B male 1m

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

All images

Name	Version	Language
10006823-Images-.zip

OMNITRONIC PM-444USB 4-Channel DJ mixer

4-channel DJ mixer with USB interface-MainBild

4-channel DJ mixer with USB interface-Bild-1

OMNITRONIC PM-444USB 4-Channel DJ mixer

The article is no longer in our assortment.

Check out the alternatives:

4-channel DJ mixer with Bluetooth, MP3 player and USB interface

OMNITRONIC PM-444Pi 4-channel DJ Mixer with Player & USB Interface

No. 10006825

Stock for approx. 12 wk(s)

249,00 €

No. 10006823

4 U

4-channel DJ mixer with USB interface

Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
Full duplex USB port allows simultaneous recording and playback
4 channels with gain control, 2-band equalizer, cue button and channel fader
1 DJ microphone channel with talkover selector and 2-band equalizer
Pre-fader listening to all input channels and the master output via adjustable stereo headphones output
Replaceable crossfader for crossfading between input channels with assignment switches
Master channel with level control and stereo LED level meter
Outputs: master (stereo XLR/RCA), record (stereo RCA), headphones (6.3 mm jack)
The device can be connected via USB to the PC
(19") 48.3 cm rack installation 4 U
