2 weather-proof 4" wall speakers (IP65) with mount, 40 W RMS
OMNITRONIC ODP-204T Installation Speaker 100V black 2x

svg
svg
svg
OMNITRONIC

2 weather-proof 4" wall speakers (IP65) with mount, 40 W RMS

OMNITRONIC ODP-204T Installation Speaker 100V black 2x

Stock for approx. 12 wk(s)
199,00
add to cart
Find a dealer
List price excl. 19% VAT
Prices in retail stores may vary.
Item no. 11036952
Great sound - also runs with 100 volts
You want reliable and balanced sound for your bar, restaurant, shop or the conference area of your hotel? You need indoor and outdoor speakers? With the OPD series you get powerful installation speakers that meets all your requirements.

The speakers have a brilliant sound pattern and are available in a low ohm (16 ohms) and in a 100 V version. These two cover both small and large installations. A rotatable mounting bracket is included in the delivery. A swivel wall mount with matching colors is optionally available.

With their weatherproofed (IP65) plastic cabinet the ODP speakers are well prepared for outdoor use, indoor use is of course also possible.
Features

2 weather-proof 4" wall speakers (IP65) with mount, 40 W RMS

  • 2-way system with 10 cm woofer (4") and 2 cm dome tweeter (0.8")
  • Durable plastic cabinet with metal grille
  • Power selector switch with 16 ohms operating position
  • Screw plug terminal for easy handling

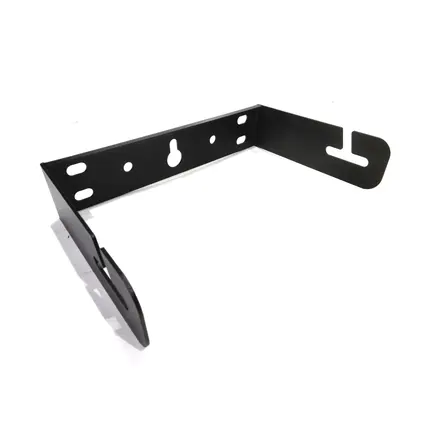

  • With Mounting bracket
  • Suitable for outdoor use IP65
  • 2 pieces per set
  • For application areas such as: Trade fair and shop fitting; restaurants, bars and hotels; product presentations and lectures

Package contents

  • 1 x user manual, 2 x top, 2 x mounting bracket, 12 x screw, 2 x safety eyelet, 2 x lid, 4 x washer, 2 x screwing, 2 x screw plug-in terminal
Technical specifications
IP classification:IP65
Power:Program: 80W
Rated: 40W RMS (16 Ohm)
Rated: 40W RMS (100V PA)
Frequency range:75 - 20000 Hz
Sensitivity:88 dB (1W/1m)
Max. SPL:103 dB
Dispersion angle:120° x 90°
Impedance:16 ohms; Public address systems 100V
Attachment system:Mounting bracket
Power tapping:10W; 20W; 40W RMS via Selector switch switchable
Connections:Input: speaker via screw plug-in terminal
Crossover frequency:3500 Hz
Speaker:1 x woofer 4"
Voice coil lows 1"
1 x Calottes highs 0,8"
Voice coil calotte tweeter 0,8"
Type of speaker:Compact cabinet speaker; On-ceiling/on-wall speaker
Color:Black
Dimensions:Width: 14,1 cm
Depth: 17 cm
Height: 23 cm
Weight:6,35 kg
Packaging units
PUEANWeightDimensions
140263976297056,95 kg42cm x 20cm x 30cm
