Technical specifications
Power supply:100-240 V AC, 50/60 Hz
Power consumption:175 W
IP classification:IP20
Protection class:Protection class I
Power connection:Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output:1 x P-Con (gray), mounting version
Fuse:5 x 20 mm, F 5 A fuse replaceable
Lamp type:LED lamp
LED type:1 x 150 W COB (chip-on-board) cold white (CW)
Max. TILT movement:70° positioning
Max. PAN movement:180°
Flash rate:0.5 - 21 Hz
Equipment:Focus motor-driven; color wheel; gobo wheel with rotating gobos; prism 4-fold rotating
Color generation:Color wheel with 8 dichroic filters plus open
Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos:Gobo wheel with rotating gobos, 7 gobos and open
Outside diameter 19.8mm
Image diameter 17mm
Shake effect
Gobos changeable
Slot-in gobo system for easy gobo replacement
DMX channels:13
DMX input:3-pin XLR (M) mounting version
DMX output:3-pin XLR (F) mounting version
Cooling:Temperature-controlled fan
Control:Stand-alone; sound to light via microphone; master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Fixtures available for:Light Captain
Projection:Flicker-free
Beam angle:11°
Beam angle (1/2 peak):11°
Color temperature:10000K
Illuminance in Lux (lx):Cold white (CW) 3m: 15649 lx, 6m: 4147 lx
Housing color:Black
Display type:OLED display
Transport aid:Rubber feet
Dimensions:Width: 33.5 cm
Depth: 16.5 cm
Height: 47 cm
Weight:7.05 kg
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
Packaging units
PUEANWeightDimensions
140263977144568,20 kg60cm x 30cm x 25cm
2402639771446317,40 kg61cm x 33cm x 54cm
Spare parts
E6512126
Pcb (Motor driver) LED TSL-1500 Scan
E6512127
Pcb (Display) LED TSL-1500 Scan
E6512128
Pcb (LED) LED TSL-1500 Scan

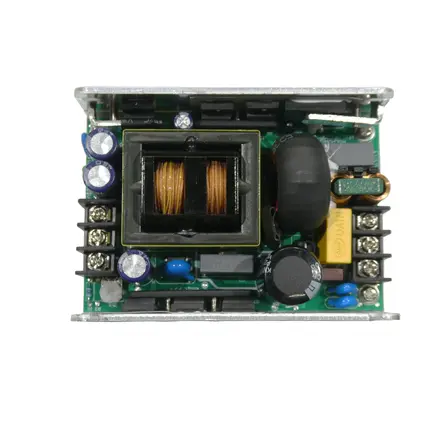

E6512129
Pcb (power supply) LED TSL-1500 Scan
Mirror 90x135mm LED TSL-1500 Scan
E3000557
fuse holder 527 LED H²O
Downloads
Spezifications
NameVersionLanguage
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral
Dimensional drawing
NameVersionLanguage
51786127-Dimensions-162639-1.0000-51786127dimensionspdf-de.pdf (62 KB)1.0000de
All images
NameVersionLanguage
51786127-Images-.zip
Video link
https://www.youtube-nocookie.com/embed/EqtkY9q5L9U
https://www.youtube-nocookie.com/embed/VJ6RPMPWMWM
...
Lighting
 / Moving lights
 / Scanner

EUROLITE LED TSL-1500 Scan

Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus-MainBild
Double tap or pinch to zoomHover to zoom
Bildergalerie öffnen
Detail images (28 overall)
Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus-Bild-1
Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus-Bild-4
Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus-Bild-5
Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus-Bild-6
Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus-Bild-7
Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus-Bild-8
Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus-Bild-9
Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus-Bild-10
Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus-Bild-11
Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus-Bild-12
Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus-Bild-13
Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus-Bild-14
Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus-Bild-15
Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus-Bild-16
Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus-Bild-17
Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus-Bild-18
Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus-Bild-19
Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus-Bild-20
Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus-Bild-21
Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus-Bild-22
Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus-Bild-23
Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus-Bild-24
Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus-Bild-25
Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus-Bild-26
Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus-Bild-27
Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus-Bild-28
EUROLITE

EUROLITE LED TSL-1500 Scan

Stock for approx. 12 wk(s)
599,00 €
add to cart
Find a dealer
Stock for approx. 12 wk(s)
List price excl. 19% VAT
Prices in retail stores may vary.
No. 51786127
svg
svg
11°
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg

Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus

  • 1 LED 150 W COB (chip-on-board) cold white (CW)
  • Positioning within 180° PAN, 70° TILT
  • Focus motor-driven; color wheel; gobo wheel with rotating gobos; prism 4-fold rotating
  • Dimmer electronic
  • Gobo effect; strobe effect
  • Color wheel with 8 dichroic filters plus open
    half colors selectable, Rainbow effect with adjustable speed in both directions
  • Gobo wheel with rotating gobos, 7 gobos and open
    shake effect
  • Gobos changeable
  • Slot-in gobo system for easy gobo replacement
  • 9 integrated show programs
  • The device is cooled by temperature-controlled fan
  • Control via stand-alone; sound to light via microphone; master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
  • Fixtures available for Light Captain
  • Flicker-free
  • With a beam angle of 11°
  • OLED display
  • Rubber feet
  • Mains input and output for power linking up to 8 units
  • For application areas such as: Clubs/dancing school; wedding/gala/events; stage; mobile djs / entertainer; restaurants, bars and hotels
  • Application possibility: Standing; suspended; on stand
