Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	160 W
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output:	1 x P-Con (gray), mounting version
Lamp type:	LED lamp
LED type:	240 x 1.5 W SMD 5054 R/G/B (homogenous color mix) 144 x 1 W SMD 5054 warm white (WW)
Flash rate:	0.8 - 22 Hz
DMX channels:	3; 4; 6; 8; 11
DMX input:	1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version 1 x 5-pin XLR (F) mounting version
Cooling:	Temperature-controlled fan
Control:	Stand-alone; DMX; master/slave function; rotary dial for brightness and preset color; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Fixtures available for:	Light´J; Light Captain; Colorchief
Projection:	Flicker-free
Beam angle (1/2 peak):	120°
Beam angle:	120°°
Color temperature:	3000K
Color rendering index (CRI):	96 Ra
Illuminance in Lux (lx):	Narrow red (R) 1m: 609 lx, 3m: 73 lx, 6m: 21 lx Narrow green (G) 1m: 1250 lx, 3m: 157 lx, 6m: 46 lx Narrow blue (B) 1m: 254 lx, 3m: 31 lx, 6m: 9 lx Narrow warm white (WW) 1m: 1957 lx, 3m: 243 lx, 6m: 73 lx Narrow all 1m: 4046 lx, 3m: 506 lx, 6m: 149 lx Wide red (R) 1m: 458 lx, 3m: 59 lx, 6m: 17 lx Wide green (G) 1m: 1048 lx, 3m: 137 lx, 6m: 41 lx Wide blue (B) 1m: 235 lx, 3m: 31 lx, 6m: 9 lx Wide warm white (WW) 1m: 1552 lx, 3m: 203 lx, 6m: 61 lx Wide all 1m: 3283 lx, 3m: 429 lx, 6m: 127 lx
Housing color:	Black
Attachment system:	Mounting bracket
Display type:	LCD display
Dimensions:	Length: 34.7 cm Width: 13.1 cm Height: 21.1 cm
Weight:	3.73 kg
Noise classification:	Class 1 (very slight noise, suitable for noise-sensitive environments)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397717792	4,10 kg	37cm x 19cm x 24cm
4	4026397718010	17,20 kg	40cm x 39cm x 52cm

Spare parts

Pcb (Display/Control) PLL-384 (SL-CTC-V03)

Pcb (LED driver) PLL-384 (SL-4DRIVE-V01)

rotary knob (dimmer/color temperature) LED PLL-384 black ( Ø=25mm)

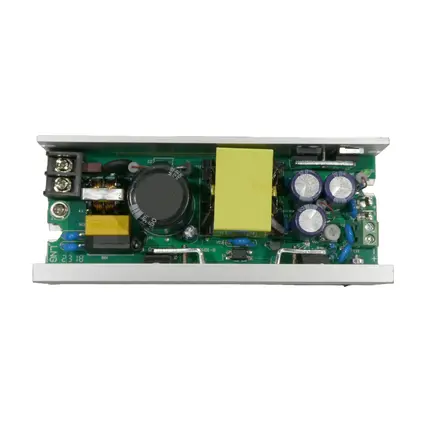

Pcb (Power supply) 40V+12V 200W LED PLL-384 RGB/WW (HS-U200D40+12B (LED))

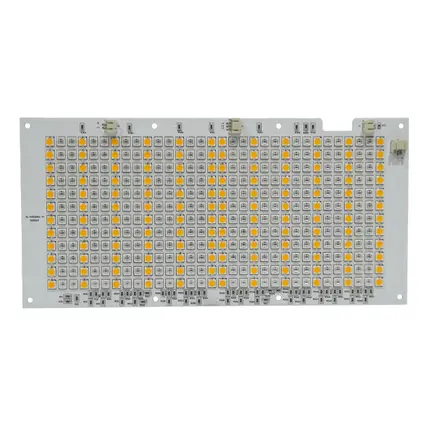

Pcb (LED) LED PLL-384 RGB/WW (SL-5050Q384-V1)

housing part (Side plate) LED PLL-384 RGB/WW Panel

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Dimensional drawing

Name	Version	Language
40001893-Dimensions-162341-1.0000-40001893dimensionspdf-de.pdf (33 KB)	1.0000	de

Support

Name	Version	Language
40001893-Support-161422-Fixture-fuer-Colorchief-V2-de.zip (219 B)	0.0000	de

All images

Name	Version	Language
40001893-Images-.zip

Publications

Move Magazin #2/2023 E

On page: 14

Size: 19 MB

EUROLITE LED PLL-384 RGB/WW Panel

Name: EUROLITE LED PLL-384 RGB/WW Panel
Brand: EUROLITE
SKU: 40001893
Price: 349.00 EUR
Availability: InStock

DMX-controlled surface light with RGB/WW color mixing, QuickDMX port, frost filter and barn doors-MainBild

DMX-controlled surface light with RGB/WW color mixing, QuickDMX port, frost filter and barn doors-Bild-1

EUROLITE LED PLL-384 RGB/WW Panel

Stock for approx. 10 wk(s)

349,00 €

Find a dealer

Stock for approx. 10 wk(s)

List price excl. 19% VAT
Prices in retail stores may vary.

No. 40001893

120°

DMX-controlled surface light with RGB/WW color mixing, QuickDMX port, frost filter and barn doors

Additional frost filter provides a wide, soft and homogeneous light
4 barn doors to avoid blinding the audience and for protection during transport
With a beam angle of 120°
Very high color rendering index (CRI)
Very quiet working noise
Flicker-free
White balance adjustable; Dimmer electronic; Dimmer speed (step response) adjustable; color change adjustable; color fade adjustable; color blend stepless
Control via stand-alone; DMX; master/slave function; rotary dial for brightness and preset color; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Strobe effect
Integrated show programs
Direct color selection for 15 preset colors
With mounting bracket
Mains input and output for power linking up to 8 units
For application areas such as: Stage; decoration; wedding/gala/events; Trade fair and shop fitting; theater; rental; advertisement/Shop window
Application possibility: Suspended; on stand
Can be operated in 3; 4; 6; 8; 11 CH mode
