Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	150 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	P-Con (gray), mounting version
Lamp type:	LED lamp
LED type:	1 x COB (chip-on-board) 2in1 BCL CW/WW (homogenous color mix)
Flash rate:	0 - 20 Hz
DMX channels:	2; 4; 5; 7
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Cooling fan
Control:	Stand-alone; IR remote control; DMX; master/slave function; sound to light via microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Fixtures available for:	Light´J; Light Captain; Colorchief
Projection:	Flicker-free
Beam angle:	17°
Beam angle (1/2 peak):	17°
Beam angle (1/10 peak):	35°
Color temperature:	2500K - 5700K adjustable
Color rendering index (CRI):	98 Ra
Housing color:	Black matte
Attachment system:	Double bracket
Display type:	LCD display
Material:	Aluminum casting
Dimensions:	Width: 25.95 cm Depth: 20.00 cm Height: 37.65 cm
Weight:	4.11 kg
Noise classification:	Class 1 (very slight noise, suitable for noise-sensitive environments)
Photobiological safety:	Risk Group 0
Mounting bracket
Diameter mounting holes:	3 x Ø11mm
Material:	Metal, 2.5 mm
Power cord
Cable construction:	3 x 1.0 mm² H05VV-F
Cable length:	Approx. 1.2 m
Remote control
Battery:	1 x button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397686548	4,96 kg	44,7cm x 31,2cm x 27,7cm
2	4026397687729	10,90 kg	64cm x 46cm x 30cm

Spare parts

LED COB 200W CW/WW Theatre COB 200 WW/CW (CZ200W-W-WW)

cover (Plastic/front) LED Theater COB 200 RGB+WW Ø=160mm

Pcb (Display) LED Theatre COB 200 WW/CW (H3-237 V1.0)

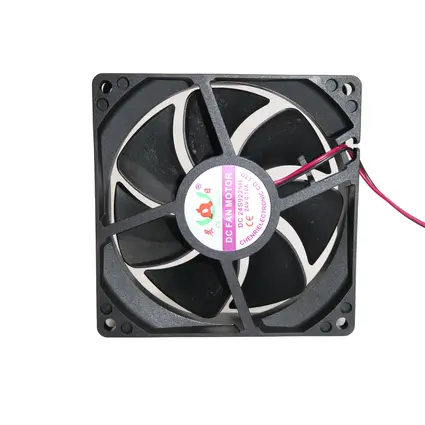

Fan 24V/0,10A 92x92x25mm (DC 24S9225H)

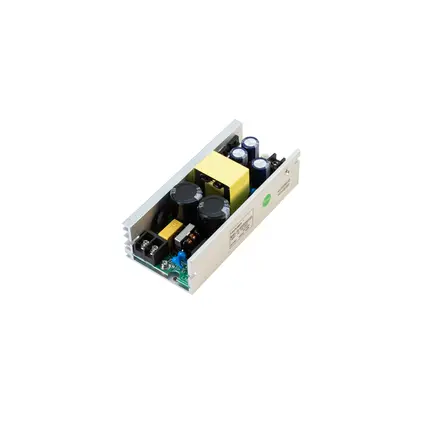

Pcb (Power supply) 36V/5,5A LED Theatre COB 200WW (HS-U200S36B (LED))

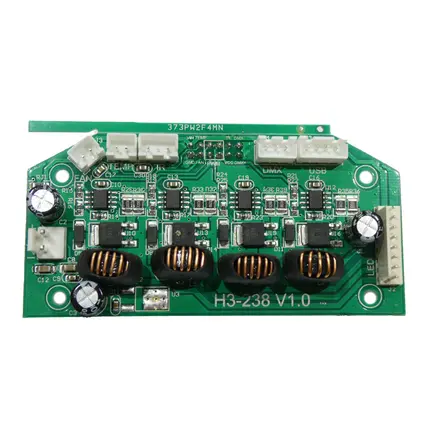

Pcb (Control) LED Theatre COB 200 RGB+WW (H3-238 V1.0)

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Support

Name	Version	Language
41602034-Support-136630-Fixture-fuer-Colorchief-V2X-de.zip (225 B)	0.0000	de

All images

Name	Version	Language
41602034-Images-.zip

Publications

Move Magazine #1/2021 E

On page: 6

Size: 43 MB

Video link

https://www.youtube-nocookie.com/embed/sfaLPkvHpNk

EUROLITE LED Theatre COB 200 WW/CW

Name: EUROLITE LED Theatre COB 200 WW/CW
Uploaded: 2022-01-01
Description: LED theatre spot with 2in1 BCL CW/WW W COB (chip-on-board) LED

LED theatre spot with 2in1 BCL CW/WW W COB (chip-on-board) LED-MainBild

LED theatre spot with 2in1 BCL CW/WW W COB (chip-on-board) LED-Bild-1

EUROLITE LED Theatre COB 200 WW/CW

Stock for approx. 2 wk(s)

359,00 €

Find a dealer

Stock for approx. 2 wk(s)

List price excl. 19% VAT
Prices in retail stores may vary.

No. 41602034

17°

LED theatre spot with 2in1 BCL CW/WW W COB (chip-on-board) LED

1 LED COB (chip-on-board) 2in1 BCL CW/WW (homogenous color mix)
Dimmer electronic
Strobe effect
Integrated show programs
The device is cooled by cooling fan
Control via stand-alone; IR remote control; DMX; master/slave function; sound to light via microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Fixtures available for Light´J; Light Captain; Colorchief
Flicker-free
With a beam angle of 17°
Variable color temperature 2500 K - 5700 K
Very high color rendering index (CRI)
With double bracket
LCD display
Mains input and output for power linking up to 8 units
For application areas such as: Stage; wedding/gala/events; Trade fair and shop fitting; theater; rental; video and photography
Very quiet working noise
Application possibility: Standing; suspended; on stand
